Crate Description
by
DominiqueLegalliot
—
last modified
2009-04-07 18:38

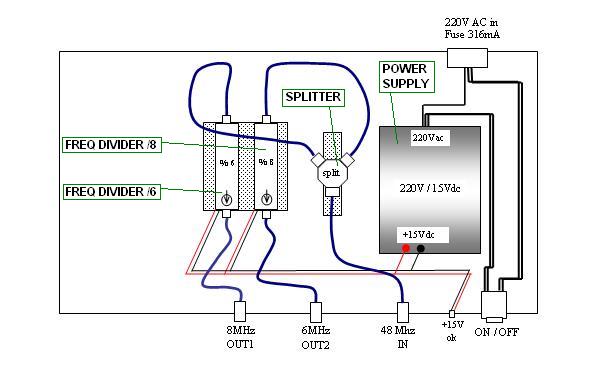

Schematic of the crate with components definition
Crate Components Description :
- Power Supply +15VDC, 0.5A: LASCAR PSU20115
- Low Noise Frequency Divider / 8 : Wenzel Associates – LNFDN-8-50-9-1-13
Frequency Divider ref 7122-024 , +15VDC , IN and OUT : SMA female connectors
- Low Noise Frequency Divider / 6 : Wenzel Associates – LNFDN-6-50-9-1-13
Frequency Divider ref 7125-024 , +15VDC , IN and OUT : SMA female connectors
- Split : 4901.01.A – Power divider 50 Ohm,6dB, 1W, DC – 2000 MHz - 3 BNC connectors
- +15V ok : green LED + R (2.6KO)
- ON / OFF button : with green light when switched on
- OUT1, OUT2, 48Mhz in : connectors double BNC
